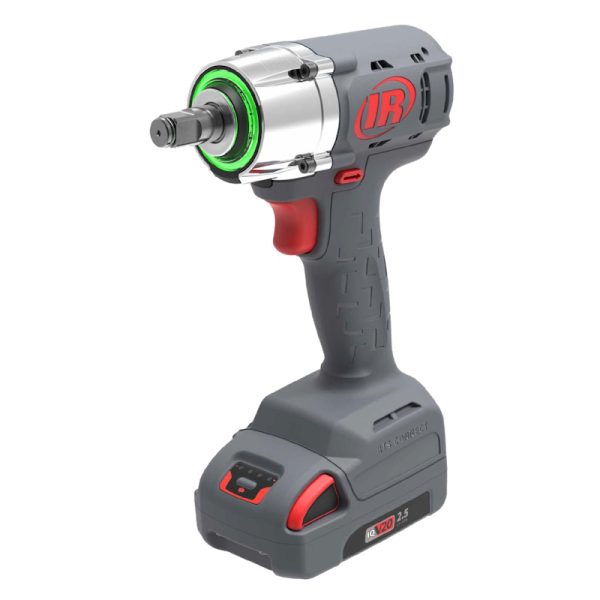

Ingersoll Rand RTS Connect Cordless Mechanical Pulse Tool
The Responsive Tightening System (RTS) perfectly blends responsive action and torque control. The Ingersoll Rand® proprietary torque control algorithm powers the simple and flexible tightening system, changing the game in reliable fastening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, 7 flush levels, dual speed non-contact trigger, and a 360° status beam LED ring light. Featuring a lightweight and ergonomic design, the cordless impact wrench enables sustained performance in continuous production environments. With reactionless performance, robust wireless connectivity, and programmable settings, the RTS Connect is the ultimate mechanical pulse tool for those who demand perfection.
Simple
- An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the user.
- The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the user on the cycle status.
- Basic setup via the tool display
- Advanced setup via INSIGHT™ Connect mobile app
- Expert setup via INSIGHTqcx™ MTC controller
Flexible
- Up to 8 Pset configurations reduce the need for multiple tools for different applications on the assembly line.
- Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations.
- 4 communication options available to adapt to evolving connectivity requirements.
Capable
- Proprietary torque control algorithm that delivers consistent, repeatable fastening every time.
- 40 torque settings and 7 flush detection levels to adapt to various application types.
- Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
| Model | Drive | Retainer Type | Fastener Size | Torque Range (Nm) |
|---|---|---|---|---|
| RTS025PQ4 | 1/4″ Hex | Quick-Change | M6-M8 | 8-25 |
| RTS060PS6 | 3/8″ Square | Pin Detent | M8-M10 | 12-60 |
| RTS060PH6 | 3/8″ Square | Hog Ring/Thru Hole | M8-M10 | 12-60 |
| RTS060PS8 | 1/2″ Square | Pi Detent | M8-M10 | 12-60 |
| RTS060PH8 | 1/2″ Square | Hog Ring/Thru Hole | M8-M10 | 12-60 |
| RTS140PS8 | 1/2″ Square | Pin Detent | M10-M14 | 30-140 |
| RTS140PH8 | 1/2″ Square | Hog Ring/Thru Hole | M10-M14 | 30-140 |
| RTS225PS8 | 1/2″ Square | Pin Detent | M12-M18 | 60-225 |
| RTS225PH8 | 1/2″ Square | Hog Ring/Thru Hole | M12-M18 | 60-225 |
